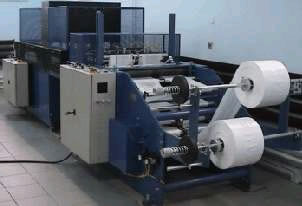

New generation module-type electronic bag making machines. 1;2;3;4-lines
Download as PDF

General Plastics GmbH builds a new generation of electronic BAG MAKING MACHINES that, equipped with a large range of ancillaries, are suitable for the production of different types of bags. A computer controller makes the programming easier, stores the standard production and manages each work clearly.

MAIN CHARACTERISTICS:

  • High speed line for producing Shoppers and Bottomwelded Bags, collected on pins.

  • The type of production may be changed instantly by preselection on the control monitor, without changing the equipment.

  • Film advancement by electronic system.

  • Stabilised welding bar with Ni/Cr strip, closed-circuit liquid cooling system.

  • Autonomous heat exchanger, wielding bar temperature of about 30 - 40° C.

  • Oscillating stacking system of bags to avoid the sticking of the weldings.

  • Hollow punch for Shoppers with automatic compensation of rotating plates, with device for adjusting the cutting incidence, to prevent the wear of discs.

  • Monitor for the electronic control of working cycles, signals and instructions to eliminate the causes of stopping.

  • Group for: reel-holder - cut and seal unit - gusseting unit - stacking table - available in a variety of models according to customer demands.

MODEL   GD-402 GD-502 GD-702 GD-902 GD-1302 GD-1502
NUMBER OF TRUCKS
pcs
1
1
1;2
1;2;3
1;2;3;4
1;2;3;4
WELDING WIDTH MAX. mm 400 500 700 900 1300 1500
BAG LENGTH MAX.
mm
150-650+x
150-650+x
150-700+x
150-800+x
150-1000+x
200-1000+x
REEL DIAMETER MAX. mm 600 600 600 600 800 900
FILM THICKNESS mm 0,008-0,15 0,008-0,15 0,008-0,15 0,01-0,15 0,01-0,2 0,01-02
MECHANICAL SPEED
(cycle/min./truck)
pcs
150-200
(300)
150-200
(300)
150-200
(300)
150-200
(300)
150-200
(250)
150-200
(250)


GD-Control Siemens


Patch, Soft loop


GD-700-Tshirt


GD-700-Tshirt


GD-Flower, Gloves


For Office File/Pockets

Garbage Bag on
roll machine
Bag on Roll
with core

GD-3side sealing GD-502 GD-202

GD-502 GD-700 with Labels GD-402

*MACHINE WITH SERVO MOTOR AND COMPUTER CONTROLLER



All machines MADE BY General Plastics Europe.
Very competitive prices
